Wide Field Eyepiece Inverted Biological Microscope , Educational Microscope

Brand Name : Mecan
Model Number : MC-S400
Certification : ISO
Place of Origin : Guangzhou
MOQ : 1 set
Price : USD1-1999/set
Payment Terms : L/C, T/T, Western Union, MoneyGram,Cash
Supply Ability : 1000 sets/year
Delivery Time : 3-15 working days
Packaging Details : Carton
Item : Inverted Microscope
Working distance : 195mm (without condenser)
Size : 240mm(X)× 210(Y)mm
Moving range : 128mm(X)× 80(Y)mm
Net Weight : 13.5 kgs
Gross Weight : 18 kgs
Packing Size : 660mm×590mm×325mm
Contact Now

Wide Field Eyepiece Inverted Biological Microscope , Educational Microscope


Features of Wide Field Eyepiece Inverted Biological Microscope

  • New research and new development
  • Apply to observation and cultivation for cell tissue
  • Wide field eyepiece, view field up to Φ23mm,more comfortable for observation

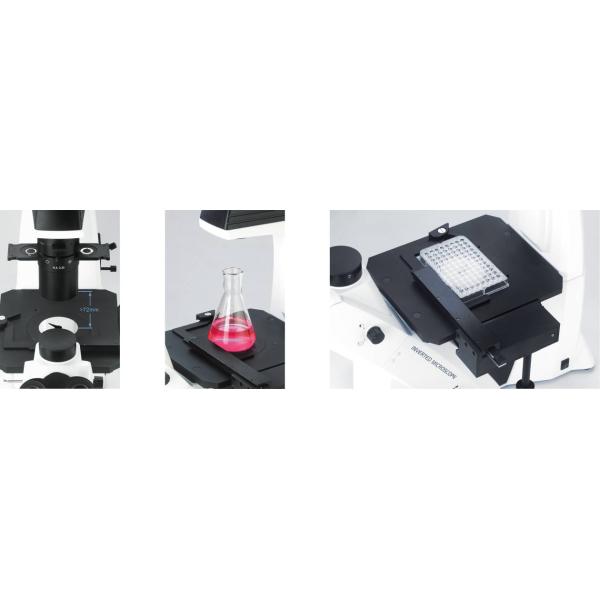

  • Long working distance condenser N.A. 0.30,Working distance:72mm
  • Working distance: 195mm (without condenser),available for extra high culture dish
  • Large size stage, convenient for research. Size:240mm(X)× 210(Y)mm
  • Mechanical stage available for 96 holes plate. Moving range:128mm(X)× 80(Y)mm
  • Large diameter quintuple nosepiece can be installed more objectives, more convenient for using.
  • Light distribution (both): 100 : 0 (100% for eyepiece);
  • 80 : 20 (80% for trinocular head and 20% for eyepiece)

Culture Dish Holder

Objective Parameter List (Cover-glass thickness1.1mm)


Working distance(mm)

LWD Infinity Plan ObjectivesLPL 4×0.1112.1
LPL 10×0.258.3
LPL 20×0.407.2
LPL 40×0.603.4
LWD Infinity Plan Phase Contrast ObjectivesLPL Ph P 10×0.258.3
LPL Ph P 20×0.407.2
LPL Ph P 40×0.603.4

Inverted Biological Microscope Outfits

EyepieceWF10×/22mm(23mm is optional)●●
LWD Infinity Plan ObjectivesLPL 4×/0.11W.D.=12.1mm
LPLAN 10×/0.25W.D.=8.3mm
LPLAN 20×/0.40W.D.=7.2mm
LPLAN 40×/0.60W.D.=3.4mm
LWD Infinity Plan Phase Contrast ObjectivesLPL Ph P 10×/0.25W.D.=8.3mm
LPL Ph P 20×/0.40W.D.=7.2mm
LPL Ph P 40×/0.60W.D.=3.4mm
Annular Spot10×
20×/ 40× ( for both 20× and 40× )


Trinocular Head

Inclined 45°, interpupilary distance: 48-76mm

Light distribution (both):

100: 0(100% for eyepiece)

80:20 (80% for trinocular head, and 20% for eyepiece)

Mechanical Stage

Stage size: X×Y: 210×241mm, Round slide size:Φ118mm,

Attached mechanical stage

(available for 96 holes plate, moving range X×Y:128×80mm.)

Culture Dish Holder65mm

Long working distance, Quickly detachable , N.A.0.3,

Working distance: 72mm (with condenser),195mm(without condenser).

Koehler Illumination6V/30W (input voltage:100V~240V)
C-mount1× C-Mount (better for digital photograph)
0.5× C-Mount ( focus adjustable, better for digital camera)
Adaptor for Digital PhotographUse for CANON/NIKON/OLYMPUS etc.
Epi Fluorescence IlluminationEpi fluorescence unit , field diaphragm,center adjustable.
100W mercury lamp (OSRAM)
B, G, V, UV fluorescence filters can be chosen.
Digital mercury lamp power box (input voltage:100V~240V)
