Practical Advanced Panoramic Lmaging Technology Panoramic X-ray Machine
Model : MC-QJ01
Practical 3 in 1 System
CBCT+Real Panoramic+Cephalometric
Flexible & Simple Upgrade
System Upgrade:Panoramic to CBCT
FOV Upgrade:5X5cm to 8X5cm,12X8.5cm
Advanced Panoramic Lmaging Technology of panoramic x-ray machine
Ultra HD
Auto Focusing
Stitching Solution
Easy way to extend the FOV size
Flexible & Simple Upgrgde:Expand your Diagnostic Area of panoramic x-ray machine
We offers simple and convenient system upgrade.By attaching the CBCT sensor on the sensor holder of the panoramic unit.a 3D diagnosic image will be available to you instantly making it more affordable than ever before.That is genuine flexibility without the need to purchase a separate CBCT unit.With this flexibility ,simple & easy FOV upgrades from small FOV-“5*5cm or 8*5cm”to middle FOV-“12*8.5cm”are available.By simply adding additionallarger FOV sensors,you can see more anatomical structures that enables you to do more precise and extensive diagnosis.
Ultra HD(High Definition)Panoramic lmage
With VATECH's new innovative Ultra HD technology we offer you more enhanced features and advantages.With its unique 5.2lp/mm compared with the 2.5lp/mm guide line of DIN for panoramic image,clearly provides more superior and higher image quality.(Option)
Clinical lmportance
Ultra HD Panoramic image,the newest technology from us,offers the exact image of caries without any distortion,especially in the lower area of enamel.Furthermore,you can precisely check the actual volume of pulp without magnification from the panoramic image.Also,after the implant surgery,it shows clear osseo integration of fixture as well as trabecular,alveolar bone and the detail of the Lamina Dura.

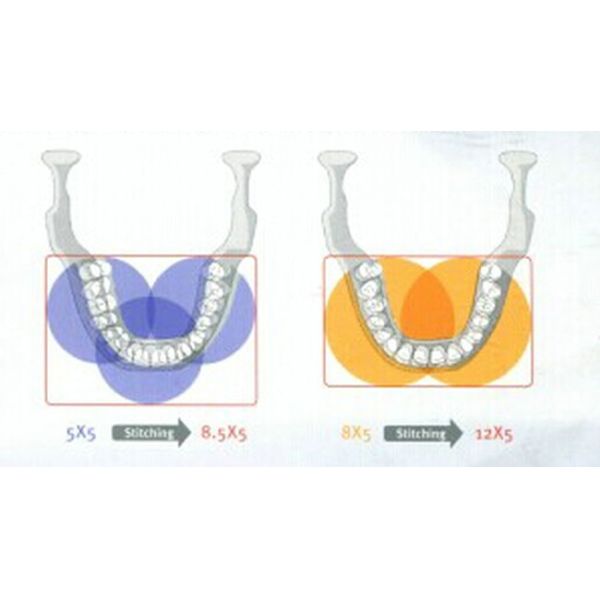

Stitching Program
Stitching program shows a wider image by automatically merging two or three localized volumes.Obtain a wide 3D acquisition by openating the stitching program without upgrading the CT machine.It's very useful in multiple implant treatment cases.
| General | Stitching |
| 5*5, 3 volumes | 8.5*5 |
| 8*5 ,2volumes(Option) | 12*5 |
Specification
| Function | 3 in 1 :Panoramic,CBCT,Cephalometric |
| CBCT sensor | CMOS sensor |
| File Size | 30MB (5*5/0.2 voxel) 72.8MB(8*5/0.2 voxel) |
| Focal Spot | 0.5mm |
| Scan Time | CBCT:24 sec(FOV5*5)/24 sec(FOV 8*5) Pano: 9.8/13.5/18sec (Fast/Normal/Ultra HD) Ceph: 12.5-13.5sec |
| FOV Size(cm) | 5*5(Single)/ Stitching:8.5*5 8*5/Stitching:12*5 12*8.5(multi:5*5,8*5, 8.5*8.5, 12*8.5) |
| Recon Time | Less than 1 minute(standard) |
| Generator Voltage/Current | CBCT:50-90 kVp / 2-10mA Pano: 50-75 kVp / 2-10mA Ceph: 50-85 kVp / 2-10mA |
| Rotating Angle | 360°/ 240° |
| Dimension(W*D*H mm) | 1945*1535*2328(Pano+Ceph) 1000*1535*2328 (Pano) |
| Option | Auto Focusing / Ultra HD / LCD Touch Panel / Base |
| Voxel Size | 0.12/ 0.2 |
| Patient Position | Standing/ Wheelchair accessible |
